| Brand |
Lenovo |
| Model |
Legion Pro 5 16AFR10 (83F2004JTA) |
| Processor |
AMD Ryzen 9 9955HX (2.5GHz up to 5.4GHz, 16C/32T, 16MB L2 Cache / 64MB L3 Cache) |
| Chipset |
AMD SoC Platform |
| AI Engine |
None |
| Graphics |
NVIDIA GeForce RTX 5070 (8GB GDDR7) |
| Display Screen |
16.0″ 2560×1600 (WQXGA) 16:10, OLED 1100nits (peak) / 500nits (typical) Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance |
| Main Memory |
32GB (2x 16GB) DDR5-5600 SO-DIMM |
| Memory Slot |
2x DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 32GB DDR5-5600 offering |
| Storage |
1TB SSD M.2 2242 PCIe 4.0×4 NVMe |
| Storage Slot |
Two M.2 2280 PCIe® 4.0 x4 slots |
| Optical Disk Drive |
None |
| Web Camera |
• 5.0MP with E-shutter • 2x, Array Microphone |
| Sound Technology |
High Definition (HD) Audio, Realtek® ALC3306 codec |
| Audio Jack |
1x Headphone / microphone combo jack (3.5mm) |
| Speaker |
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio |
| Network |
10/100/1000 LAN |
| Wireless |
Wireless 802.11be (Wi-Fi 7) |
| Bluetooth |
Bluetooth 5.4 |
| Ports |
2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 2.1 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1* 1x HDMI® 2.1, up to 8K/60Hz *Supports Lenovo protocol for 140W charging but requires a unique Lenovo adapter for operation. |
| CardReader |
None |
| Power Adapter |
245W Slim Tip (3-pin) |
| Battery |
Integrated 80Wh |
| OS |
Windows 11 Home |
| Material |
Aluminium (Top), PC-ABS (Bottom) |

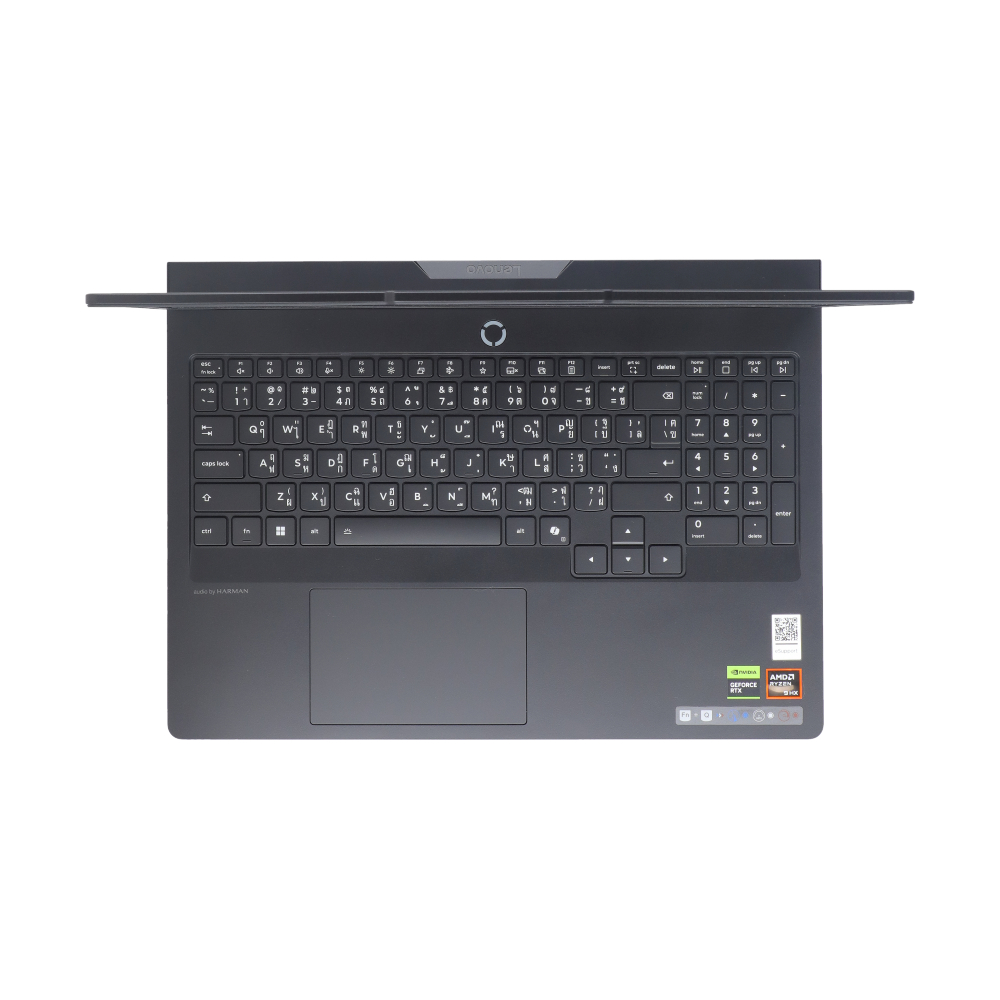

| Keyboard Type |
ENG/TH, 6-row, multimedia Fn keys, numeric keypad, key travel 1.6mm, cap recess 0.3mm, Copilot key |
| Backlit |
24-Zone RGB backlight |
| Touchpad |
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP) |
| Finger Print |
None |
| Special Feature |
AI Chip: LA3 |

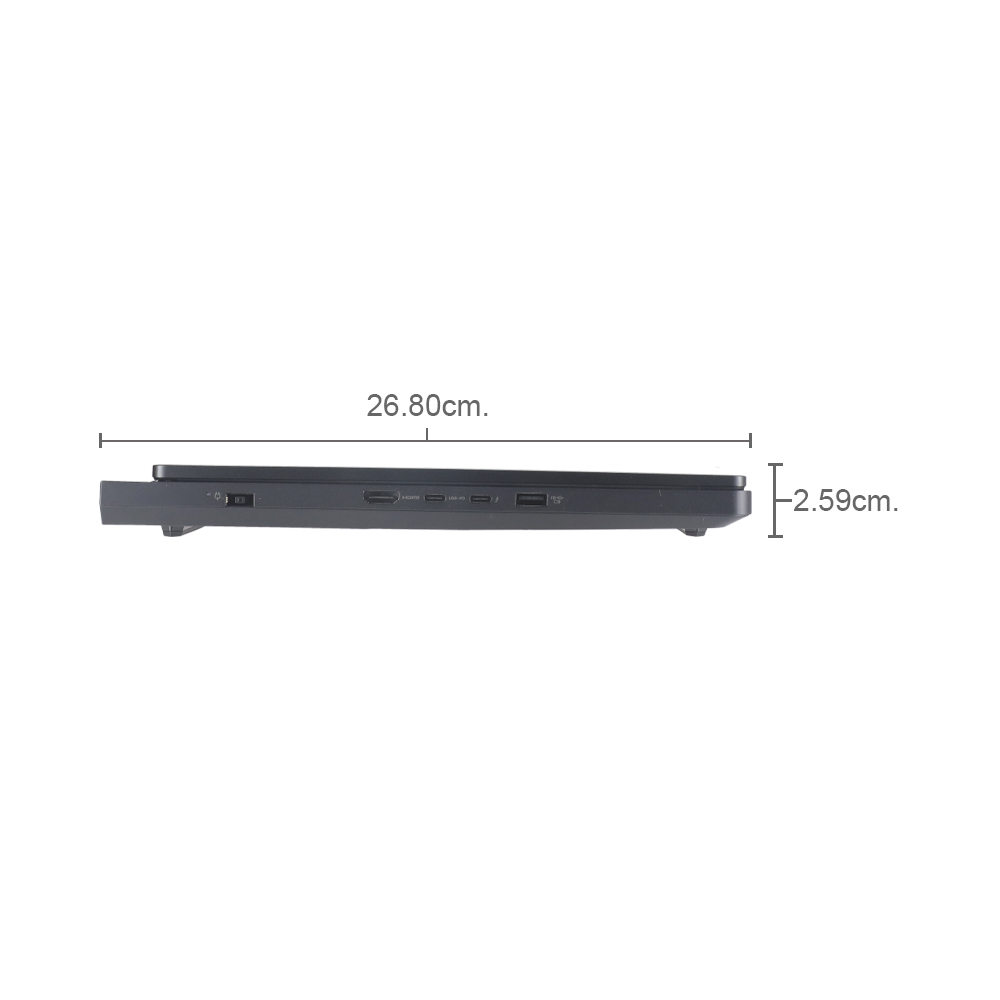

| Dimension (cm) |
(W x L x H) : 36.43 x 26.80 x 2.59 cm |
| Package Dimension (cm) |
(W x L x H) : 8.30 x 54.10 x 34.20 cm |
| Net Weight (kg) |
2.30 kg |
| Gross Weight (kg) |
3.66 kg |
| Volume (cm³) |
15,356.83 kg |
